Tsunami Floating Shelter SAFE+ of Tajima

セーフプラスシェルター 津波 避難 防災

Tsunami & Flood Floating Shelter "SAFE+ (Plus) Model:300"

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

The 300 Series model SAFE+ seats 8 persons per pod, ideal for homes and small offices. At times of tsunami or high tides, the shelter protects the occupants inside and should the water level rise above threshold, the pod itself floats atop the water level to keep safe from the water disaster.
Immensely strong, light-weight and unsinkable. With a large entry point set lowered to the ground, allows easy access for children, elderly and persons with disability. The shelter pod complements existing tsunami escape measures such as seawalls and escape towers ensuring safety together with your loved ones with our 300 series shelter pod.

Key Features to the SAFE+ 300 Series

Immensely strong FRP monocoque structure

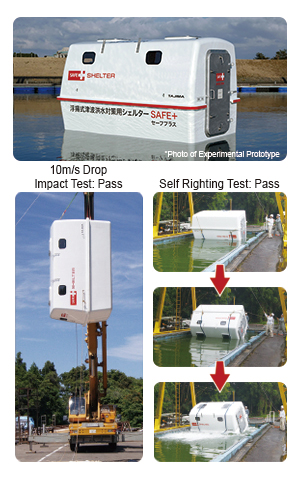

The pod is primarily constructed using FRP (Fiber Reinforced Plastics) material which is extremely strong and used even for racing car bodies. The shelter pod passes structural strength tests such as 10m/s shock, 3m water surface drop and 180 degree self-righting.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Smaller and Lighter than the 600 Series, placement is easier.

The 300 series only takes up about the space of a mid-size van and it’s a light-weight 880kg so it can also be easily setup on the roof-top. Areas with overall less time to escape from tsunami following an earth quake and children, handicapped persons with difficulty escaping would benefit greatly by placing the shelter closer to home.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Spacious and Comfortable, Multi-Use Space

8 seats are lined up in the roughly 7 square meters space with windows providing visibility and comfort. The atmosphere is designed to minimize the discomforting feeling of confinement and encourage swift evacuating action. Abundance of space means your dear pets can board alongside with you. Under the bench seats are compartments to store water, food and other neccessary supplies. The shelter itself can be useful in everyday situations and taking cover from rain.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Deceivingly spacious interior and Safety minded equipment

The many windows take in lots of natural light to alleviate anxieties during disaster situations. The 4 point seat belts and sturdy headrest protects occupants from impacts and overturns.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Designed to be useful in everyday life

The rectangular shaped space could be used just like a spare room. Invite friends over some tea or use all the space for yourself as a quiet place to enjoy your hobbies. Storage space available for drinking water and food.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Large door opening facilitates quick and easy boarding

Designed to be as much accessible as possible, there is no ladder to climb, but simply a large door. With a slope attached a wheel chair can roll on board.

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

Features

Tsunami & Flood Floating Shelter 'SAFE+ (Plus) Model:300'

【Key Specifications】
Overall Length 3.90 m
Overall Width 2.15 m
Overall Height 2.15 m
Seating Capacity 8
Shelter Weight 880 kg
Rated Crew Weight 520 kg
Rated Cargo Weight 200 kg
Full Load Weight 1600 kg
Full Load Waterline 24 cm
Entry Step Height 36 cm (w/ skid 42 cm)
Space 6.6 square meters
Suggested Transport 4t class flatbed truck / 2t wide bed truck
